Trusyou Implant System Clinical Cases Issue 6

Patient information:

History of current illness: The patient came to our hospital with the main complaint of "the upper right back tooth has been missing for more than several months" and requested to repair the missing tooth.

Past history: The patient is usually in good health, has no history of genetic disease, hypertension, heart disease, or diabetes. There are no infectious diseases, endemic diseases or other diseases, and there is no history of hospitalization for serious illness. Vaccinations are carried out locally, and there is no history of drug allergies. No abnormalities were found in the remaining systems.

Intraoral examination: 26 are missing, soft tissue and opposing teeth are in fair condition.

Imaging examination: The height of the alveolar ridge at the 26 missing site is seriously insufficient, and the bone defect on the jaw side is obvious.

Treatment plan: Perform transalveolar crest sinus low mucosa lifting surgery, and perform implant surgery at the same time.

Example 6 of short-term clinical comparative observation of Excellent implants applied to dentition defects

Patient information：

Name: Wang Moumou
Gender:Female
Contributor: myself
Age:34
Marriage:married
Record date: 2016/11/10

Chief complaint: The upper right back tooth has been missing for several months and requires restoration.

History of current illness: The patient came to our hospital with the main complaint of "the upper right back tooth has been missing for more than several months" and requested to repair the missing tooth.

Past history: The patient is usually in good health, has no history of genetic disease, hypertension, heart disease, or diabetes. There are no infectious diseases, endemic diseases or other diseases, and there is no history of hospitalization for serious illness. Vaccinations are carried out locally, and there is no history of drug allergies. No abnormalities were found in the remaining systems.

Intraoral examination: 26 are missing, soft tissue and opposing teeth are in fair condition.

Imaging examination: 26 The alveolar height at the missing site is seriously insufficient, and the bone defect on the jaw side is obvious.

Treatment plan: Perform transalveolar crest sinus low mucosa lifting surgery and perform implant surgery at the same time.

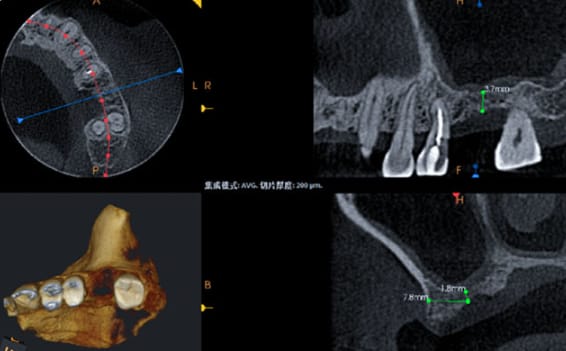

Preoperative imaging:

It can be seen that the alveolar ridge height of the patient's missing teeth is seriously insufficient, only less than 4mm, and the bone defect on the jaw side is obvious. After comprehensive consideration, it was decided to use the transalveolar ridge sinus lifting method and implants were implanted at the same time.

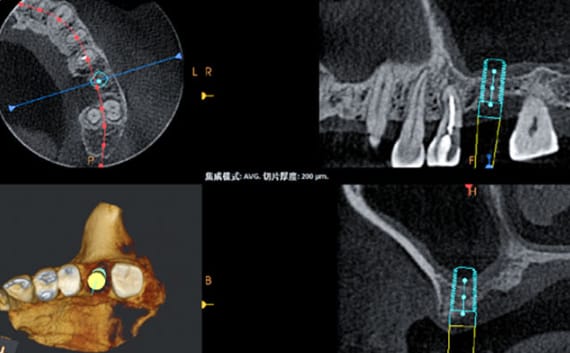

Preoperative CBCT simulated implant placement

Operation situation：

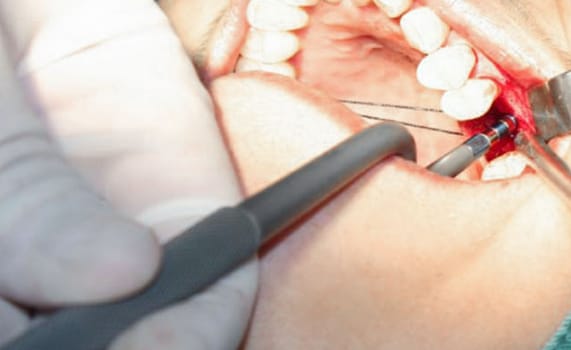

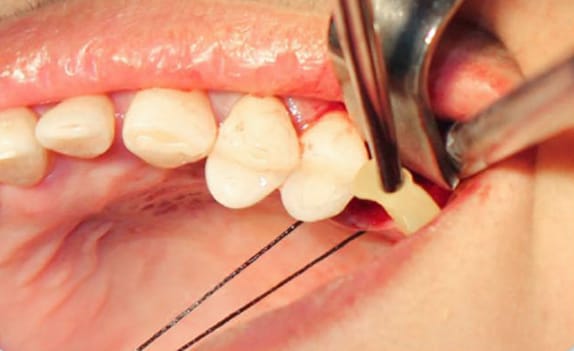

During the operation, the low-speed mode of the implant machine is used to extract autologous bone, percussion to lift the maxillary sinus floor, and squeeze the alveolar bone.

The sinus floor was filled with PRF and autogenous bone powder, and the maxillary sinus floor was moderately lifted again and the Excellence Series BL.RC4110 Ф4.1L=10mm was implanted as planned. The initial stability was acceptable. The implant healing cap was placed and then sutured.

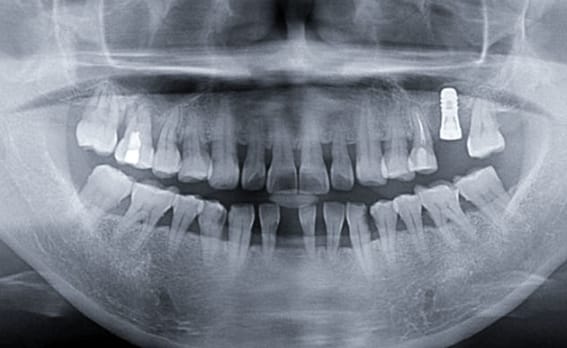

Curved cross-section film on the day after implantation, showing good three-dimensional position of the implant

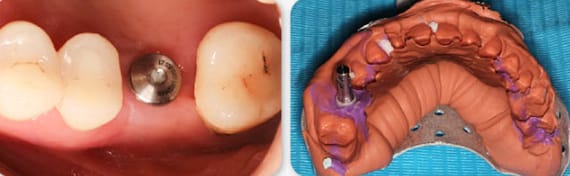

A review of the occlusal photo taken 5 months after the implant surgery showed that the condition around the implant was in good condition, and the impressions and repairs were carried out as planned.

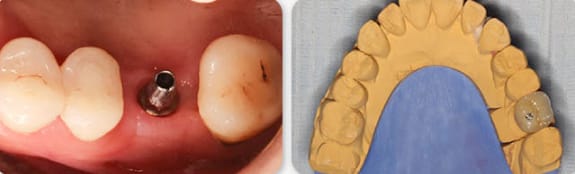

Adopt BL.MA.RC4625 straight abutment + zirconia all-ceramic crown for bonding and repair, fully remove the adhesive residue, adjust the occlusion, and complete the repair.

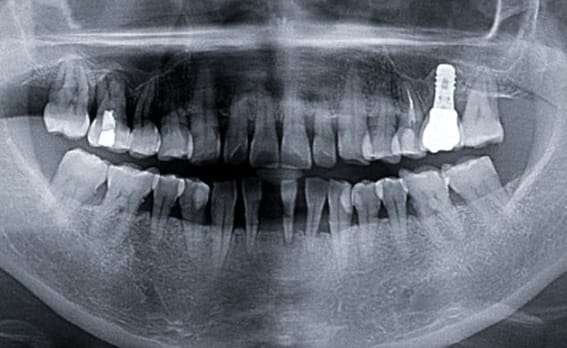

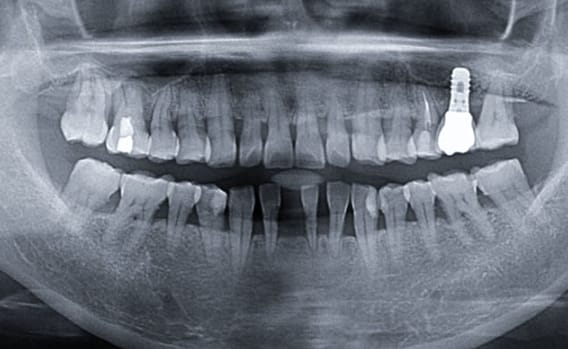

Curved tomographic image immediately after tooth placement, the floor of the maxillary sinus is clearly visible

The image taken one year after the repair showed no abnormalities around the implant and the implant stability was good.

Introduction by the surgeon:

Wu Haoyang
Department: Implantology Department, Henan Stomatological Hospital
Job title: Director of the Implantology Department of Henan Stomatological Hospital
Standing Member of the Oral Implantology Professional Committee of the Chinese Stomatological Association
Postgraduate tutor at the Department of Stomatology, Zhengzhou University
Chairman of Henan Oral Implantology Professional Committee
Professional expertise: Diagnosis and treatment of oral implants, maxillofacial tumors, trauma, and congenital deformities

Liu Jie
Department: Implantology Department, Henan Stomatological Hospital
Job Title: Deputy Chief Physician, Implantology Department, Henan Stomatological Hospital
Master's degree from Zhengzhou University School of Stomatology
Professional expertise: dental and alveolar surgery and oral implants in oral and maxillofacial surgery.
