Trusyou Implant System Clinical Cases Issue 7

Patient information:

History of current illness: The patient came to our hospital with the main complaint of "the lower right back tooth has been missing due to decay for several years" and requested repair.

Intraoral examination: 36 residual crowns, soft tissue hyperplasia covers the residual crown, and the mesial and distal width of the missing tooth is approximately 7mm. There was no growth of the opposing teeth, and the remaining teeth were in good periodontal condition.

Imaging examination: 36 residual crowns, a small round shadow can be seen under the mesial root, the periodontal space is widened, and apical granuloma is considered.

Treatment plan: 36 minimally invasive tooth extractions, delayed implantation.

Example 7 of short-term clinical comparative observation of Excellent implants applied to dentition defects

Patient information：

Name: Chen Moumou
Gender: Male
Contributor: myself
Age:26
Marriage:married
Record date:2017/09/20

Chief Complaint: The lower right back tooth has been missing due to tooth decay for several years.

History of current illness: The patient came to our hospital with the main complaint of "the lower right back tooth has been missing due to decay for several years" and requested repair.

Intraoral examination: 36 residual crowns, soft tissue hyperplasia covers the residual crown, and the mesial and distal width of the missing tooth is about 7mm. There was no growth of the opposing teeth, and the remaining teeth were in good periodontal condition.

Imaging examination: 36 residual crowns, a small round shadow can be seen under the mesial root, the periodontal space is widened, and apical granuloma is considered.

Treatment plan: 36 minimally invasive tooth extractions, delayed implantation.

Preoperative imaging:

The patient's initial diagnosis image: 36 residual crowns, a small round shadow can be seen under the mesial root, the periodontal space is widened, and apical granuloma is considered.

2017-11-14

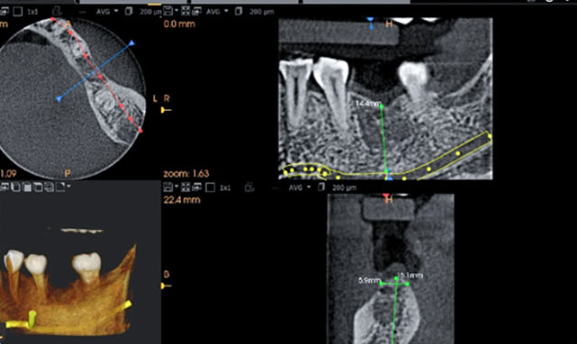

CT image of the patient before implantation: the extraction socket has not completely healed, the distance from the inferior collar canal is 15.1mm, and the lingual bone width is 5.9mm. It is planned to implant a Excellence series BL.RC4110 on the septum, Ф4.1, L=10mm

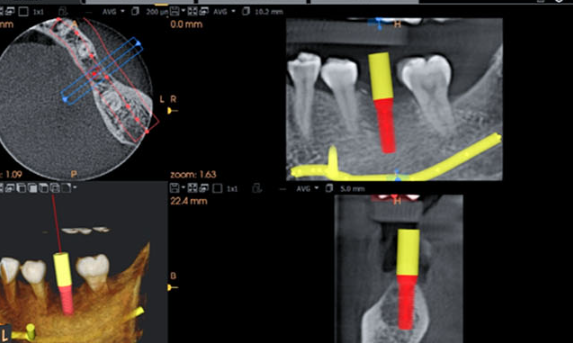

Preoperative CT simulation of implantation and planned implantation
Excellence Series
BL.RC4110, Ф4.1, L=10mm implant.

Operation situation：
2017-11-21
Immediately after the operation, the three-dimensional position of the implant was in good condition and the patient was scheduled for elective repair.

2018-01-29
The patient's follow-up visit showed that the condition around the patient's implant site was good and the gingival keratinization was normal.

The healing cap was removed, the area around the cuff was cleaned, and the ISQ mobility meter was used for inspection. The comprehensive measurement results showed that the mesio-distal and buccal-lingual readings were all greater than 70, indicating that the osseointegration was good and the repair requirements were met.

Check the occlusion, insert the Excellence Series BL.CIP.RC4201 closed impression transfer rod, and complete the implant impression related operations.

2018-02-05 The final restoration was put in and the occlusion was adjusted.

2018-11-06
The patient was reviewed 9 months after the repair. The soft scale around the restoration was cleaned, and no abnormalities in the gingival mucosa were found. A periapical radiograph of a single tooth showed that the bone tissue around the implant was in good condition. The patient was satisfied with the repair results.

Introduction by the surgeon:

Wu Haoyang
Department: Implantology Department, Henan Stomatological Hospital
Job title: Director of the Implantology Department of Henan Stomatological Hospital
Standing Member of the Oral Implantology Professional Committee of the Chinese Stomatological Association
Postgraduate tutor at the Department of Stomatology, Zhengzhou University
Chairman of Henan Oral Implantology Professional Committee
Professional expertise: diagnosis and treatment of oral implants, maxillofacial tumors, trauma, and congenital deformities.

Liu Jie
Department: Implantology Department, Henan Stomatological Hospital
Job Title: Deputy Chief Physician, Department of Implantology, Henan Stomatological Hospital
Master's degree from Zhengzhou University School of Stomatology
Professional expertise: dental and alveolar surgery and oral implants in oral and facial surgery.
